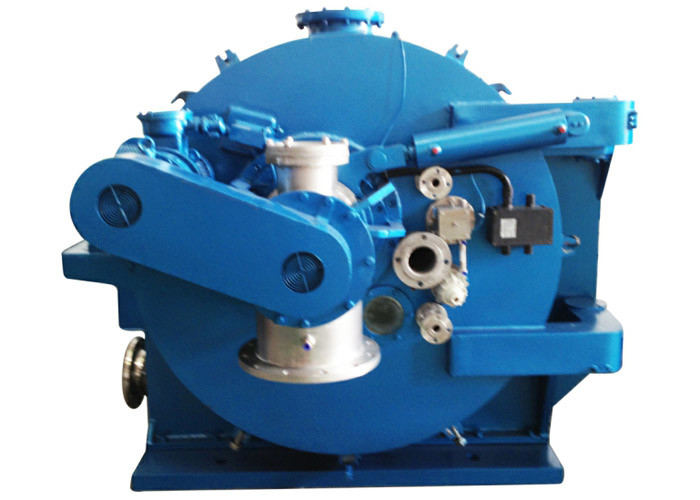

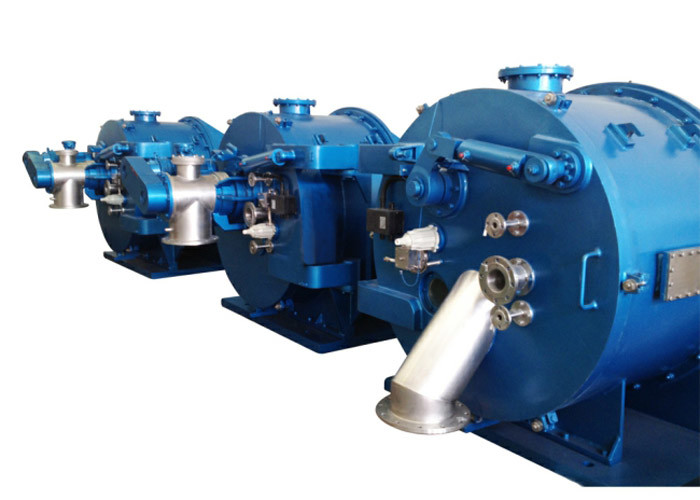

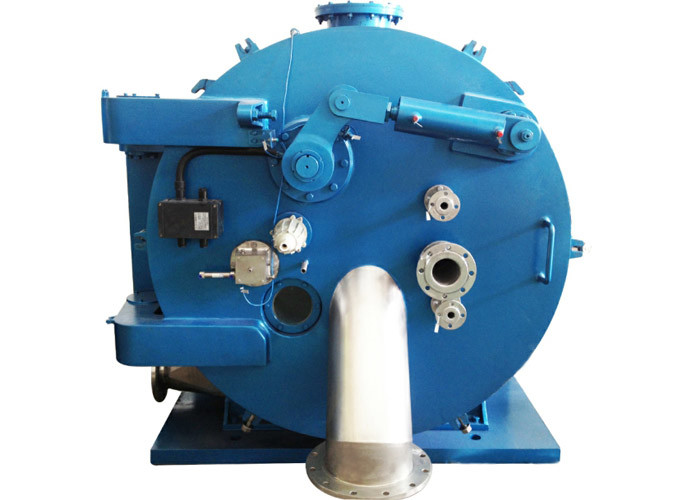

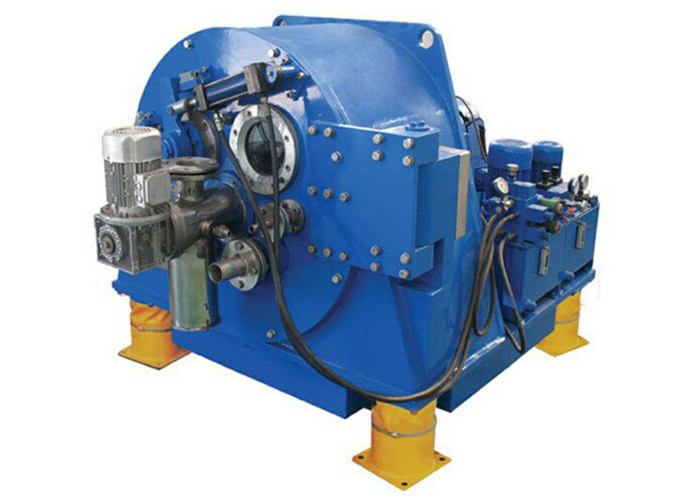

High Effective Starch Dewatering Centrifuge Advanced Structure industrial Solid-liquid separation Centrifuge
| Item/Model | PPCS-26 | PPCS-140 | PPCS-250 | PPCS-260 |
|
Basket diameter(mm) |
450 | 800 | 1000 | 1050 |
| Basket Height(mm) | 300 | 450 | 500 | 500 |
| Basket volume(L) | 21 | 110 | 200 | 210 |
| Loading Capacity(kg) | 26 | 140 | 250 | 260 |
| Max Speed(r/min) | 2600 | 1500 | 1400 | 1400 |
| Maximum separating factor | 1700 | 1007 | 1095 | 1150 |
| Motor power(Kw) | 15 | 37 | 45 | 45 |
| Dimensions (including shock absorb) | 1800*1375*1902 | 2439*1900*2150 | 3050*2400*2192 | 3050*2400*2192 |
Discharging tape
Main Characteristics
1. Comparing with common horizontal centrifuges with the same specification,the production capacity can be raised by 40% to 60% and the moisture content of filter cake is lower；
2. Changing the position of siphon pipe port can regulate the filter speed,thus,different filter speed can be realized during different process as feeding separation,filtering,washing and dehydration.The centrifuge will be always under best working condition and the equipment operates stably and the vibration and noise are rather low；
3. When the scraper is finished,the regenerate liquid will be fed from the siphon feeding pipe to regenerate and resuspend the filter cake,bake flush and remove the left filter cake；
4. The automatic residual cakes removing device is optional(have owned the national patent)
Properties
PPCS Series automatic siphon centrifuge is a solid-liquid separation equipment which adopts continuous operation and intermittent discharging.Its production capacity and separation effect is better than PPCF centrifuge.
This machine is controlled by PLC and regulates speed by frequency control,braking system applies dynamic braking and regenerative braking,the whole separation process is automatic cycle operation and manual operation mode is applicable to be changed over from automatic operation mode.
Certification
About us
Jiangsu Hanpu Mechanical Technology Co., Ltd. is a project engineering company jointly established by Jiangsu Saideli Pharmaceutical Machinery Co., Ltd., Jiangsu Zhongyi Environmental Technology Co., Ltd., FERREO A/S in Denmark, Shanghai Jiaotong University and Nanjing Kingreat Machinery Co., Ltd. Hanpu main projects include but are not limited to: MVR evaporation system,powder washing salt and vacuum salt production project, oil tank sludge cleaning project, landfill leachate treatment project,plant/animal oil processing production line, urban wastewater treatment project, various wastewater treatment projects, and CBD oil extraction production line. Technical support and transfer of API product technology package. The main products are centrifuge series, multi -effect and MVR evaporation and crystallization equipment, laser welding heat transfer board, lithium battery material mixing equipment, pressure vessel and titanium, zirconium, nickel, and other non-standard special equipment.
Tips:Solid-liquid seperation,High Effective Starch Dewatering Centrifuge,Industrial starch seperator
